Reality Series

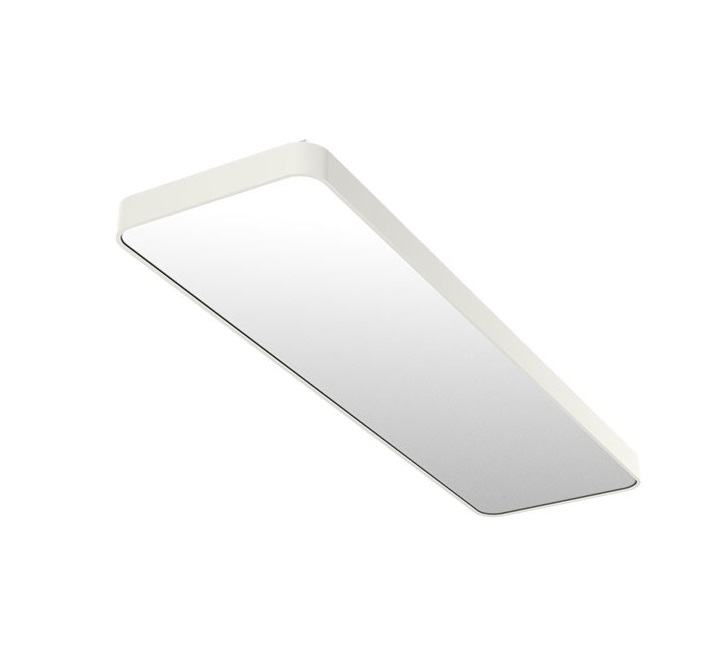

Helix R Wide Suspended (583×315×64mm) Indirect

The Helix R Wide as a flat luminaire with the option of indirect lighting distribution, it is well suited for low ceilings, providing excellent uniformity.

Luminaire Details

Product Name & Size
Fitting Types
IP Rating
Lumens(lm)
Wattage
Lumen Efficacy
Size (mm)
Input Voltage
SDCM
UGR
Lifetime (hours)
Warranty (years)
CCT
Driver
Helix R Wide Suspended SmallSuspendedIP2029503195.16583 × 315 × 64 mm198-264 VAC voltage, 176-276 VDC voltage
3UGR<19L80F10 @56,000hrs5 Years3000KNon-Dim

Specification Code — Consult datasheets for options

R - HELO - S/31 - 3080 - C - 02 - MP

Datasheet LDT Files
Variants Include: Range, Product, Size/Power, Beam Angle, CCT, Driver, Main Colour, Secondary Colour (if applicable), Accessories.
