Card Frames

Centralised • Drive Systems

  • Rack-mountable enclosure
  • System wide reporting
  • Intelligent cooling
  • Easy maintenance design
  • Optional touch screen display

The central component for drive system management

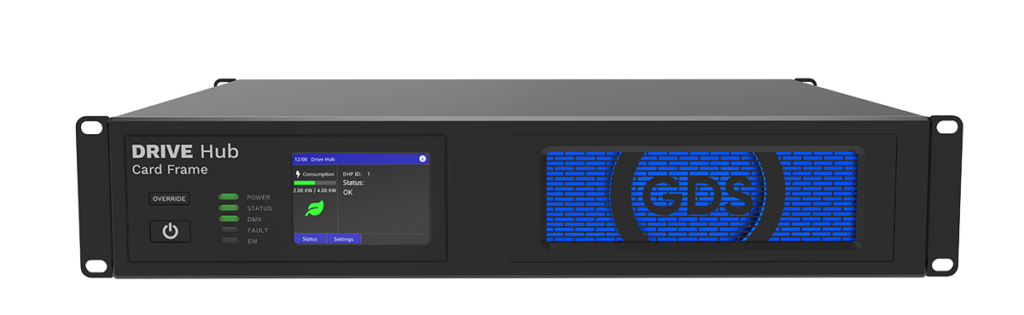

Enclosed in a 2U 19″ rack-mountable chassis, the structure of the Card Frames provide slots for a Processor Card, and 12 hot-swappable Driver Cards.
It’s intelligent cooling system autonomously manages temperature for safe and efficient operation.
DMX and DALI connectivity comes as standard on all Processor Cards providing a link between multiple Card Frames for system-wide monitoring.
Designed with a quick-release intake filter for ease of maintenance and a system override button for operational testing and emergencies.
An optional 3.5″ touchscreen display allows quick access to system configuration, monitoring, and status.
